Framework lead-in: why a structured QA blueprint matters

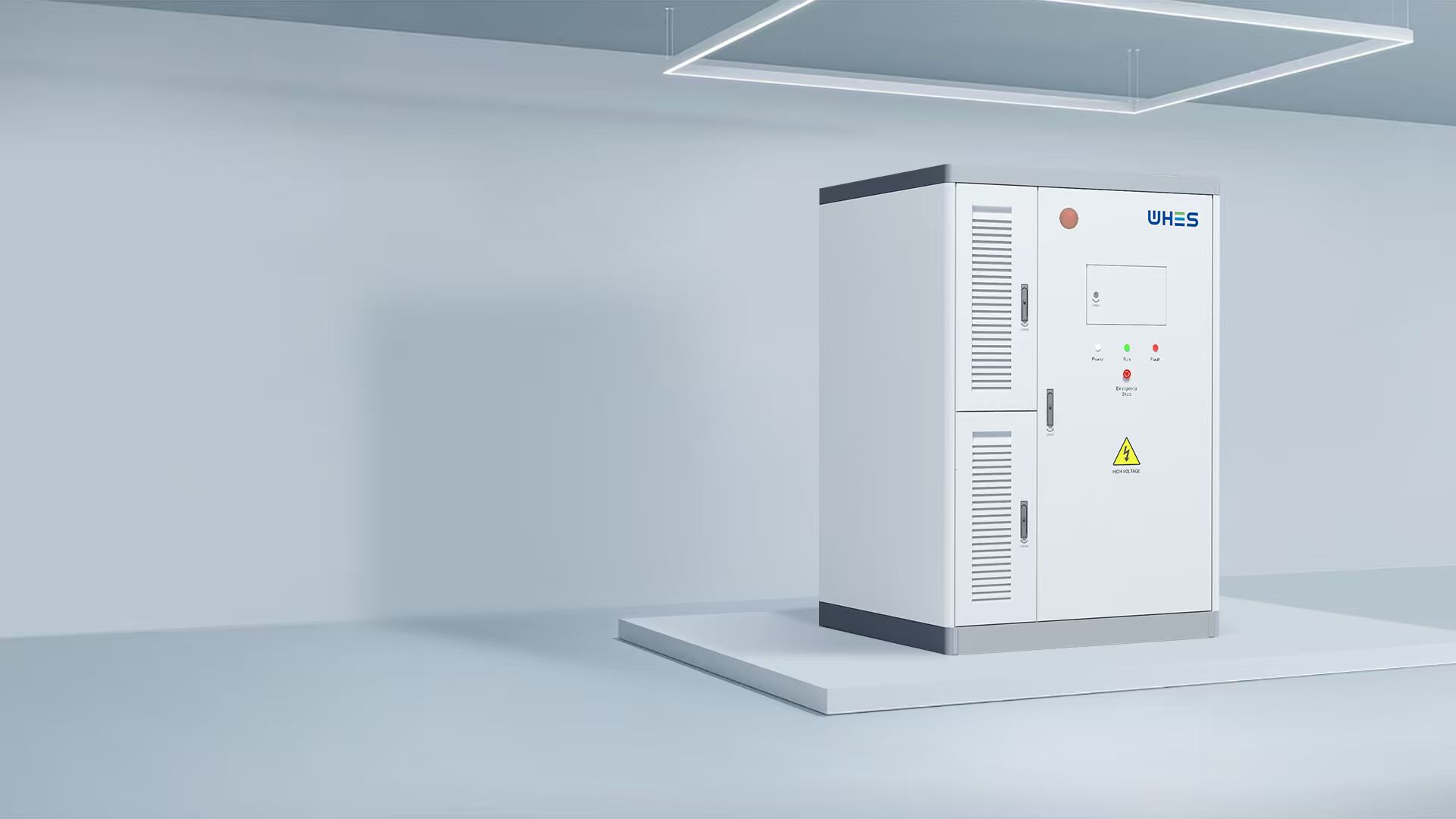

Microgrid teams routinely treat interconnection checks as a late-stage chore; that approach raises systemic risk. A repeatable QA framework turns ad-hoc validation into a predictable workflow for units such as an all in one energy storage system, cutting commissioning time and reducing rework on site. The framework below maps technical checkpoints—from documentation and design verification to commissioning tests and post-deployment analytics—so developers can audit 10 kWh wholesale battery interconnections with engineering rigor and operational clarity.
Scope and audit objectives
Define scope first: equipment class (BESS module, inverter, AC breaker), interconnection point (point of common coupling or PCC), and contractual boundaries (interconnection agreement and grid code compliance). Primary objectives are safety validation, performance verification, and compliance confirmation. Secondary goals include data integrity (telemetry and SCADA feeds), cybersecurity posture, and maintainability assessments that align with site O&M plans.
Pre-deployment documentation checklist
Before a truck rolls, confirm the following documents are complete and version-controlled:
- Approved single-line diagrams and AC/DC protection coordination studies
- Signed interconnection agreement and protection settings table
- Component datasheets: inverter, BMS, battery module, switchgear
- Factory acceptance test (FAT) reports and firmware revision notes
- Commissioning procedures and first-article inspection (FAI) acceptance criteria
These documents are the contract between design intent and field reality—missing items predict delays and scope disputes.
Design verification: technical items to audit
Key verifications include voltage and frequency ride-through settings, anti-islanding schemes, harmonics limits, and inverter protection coordination with upstream relays. Confirm battery sizing assumptions, state-of-charge (SoC) management strategy, and C-rate constraints used in the energy management system (EMS). Validate that enclosure ratings, thermal management, and ventilation provisions match the specified derating curves for ambient conditions.
Field verification and commissioning tests
Commissioning tests must be procedural and logged. Core tests include:
- Insulation resistance and polarity checks
- Protective relay trip tests and time-current coordination
- Inverter functional tests: start/stop, island detection, and grid-follow/grid-forming modes
- BMS validation: cell balancing, SoC limits, and fault injection tests
- Communication integrity: SCADA telemetry, MODBUS/IEC 61850 mappings, and latency checks
Run a capacity soak at a defined C-rate to verify battery performance against nameplate; log voltage, current, temperature, and SoC over the test window. Perform an intentional failure and recovery sequence to confirm protection coordination and safe islanding behavior. If practical, execute a test with the actual load bank or emulator used in operations—this often exposes integration problems early.
Data-driven monitoring and post-install QA
Post-commissioning, validate analytics pipelines. Ensure timestamp synchronization across meters and BMS, check for data packet loss, and validate stored historical resolution for at least 12 months. Implement automated alerts for deviations in round-trip efficiency, unexpected SoC drift, or high internal resistance trends. Remote firmware update audits and cybersecurity baseline scans should be scheduled into quarterly QA checks to avoid latent vulnerabilities.
Common failure modes and corrective actions
Typical issues observed in wholesale 10 kWh interconnections include misconfigured relay settings, incorrect inverter mode selection, telemetry gaps, and thermal runaway precursors driven by environmental mismatch. The corrective path is procedural: isolate the failure, verify design assumptions, run a replicated FAT-style test, and document a corrective action with sign-off. Prevent recurrence by updating the commissioning checklist and recording the issue in a lessons-learned register.
One practical note—insist on sample-stage trials with the actual site controller rather than bench emulators. It saves time and prevents costly firmware mismatch problems later.
Real-world anchor and lessons from extreme events
Events like the February 2021 Texas winter storm highlighted the value of rigorous interconnection QA: systems that had been commissioned with clear ride-through settings and tested protections recovered faster and avoided cascading failures. That single event shifted procurement and QA conversations across many developers and ISOs, driving tighter interconnection acceptance criteria and more emphasis on operational resilience.
Advisory: three golden rules for selecting QA priorities
1) Prioritize verification of protection coordination and anti-islanding behavior — measurable result: fewer unplanned trips during grid disturbances. 2) Validate communication and timestamp integrity end-to-end — measurable result: accurate performance attribution and faster fault isolation. 3) Test batteries under intended C-rate and thermal conditions before sign-off — measurable result: lower in-field degradation and predictable dispatch capacity.
Apply these rules consistently across projects and you’ll see fewer warranty claims and faster time-to-revenue.
